Column tubular coolers

Tubular coolers have a long history of industrial applications and still dominate in all heat exchangers.With flexible design, complete specifications, strong practical pertinence, wide application range, large temperature range and a variety of medium heat exchange.

OR series



    Heat transfer of this series of products to determine the best cooling effect.The cooler is multi-tube type, large cooling area, good cooling effect, full cooling area.Pure red copper tube with thermal conductivity above 95%.Form number, heat exchange area, fuel tank capacity, weight, pump flow, water flow.



GLP series



    This series of products is an efficient sleeve sheet type oil cooler.The cooler draws from the air conditioning heat exchanger structure and uses stamped aluminum sheets stacked together as heat transfer fins.It has the characteristics of small volume, high heat transfer coefficient, light weight and small water consumption.Can be designed and manufactured by customer requirements.

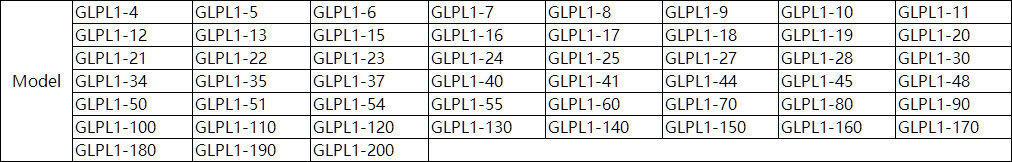

GLPL series


    This series of products is an efficient sleeve sheet type oil cooler.The cooler draws from the air conditioning heat exchanger structure and uses stamped aluminum sheets stacked together as heat transfer fins.It has the characteristics of small volume, high heat transfer coefficient, light weight and small water consumption.Can be designed and manufactured by customer requirements.


SGLP series



    The cooler adopts double structure, composed of two oil cooler of the same area and three-way valve device, one working, one standby, each cooler can bear the cooling load of the whole system, one pipe board fixed, one floating, detachable pipe harness and water chamber tank cover,Easy for cleaning, inspection and maintenance during operation.The material of cooler can be selected according to the place of use of water and a variety of system conditions.


GLC series




    Use purple copper pipe to roll out the heat dissipation fins (fin tube).Small products for fixed tube plate type structure, medium and large for swimming tube plate type.Wide coverage for low viscosity and cleaner oil coolers.It can be used in plastic machinery, hydraulic equipment, air compressor, thin oil lubrication system, hydraulic coupler, power device and other industries.Medium and large products of swimming tube plate structure, can be removed for cleaning and maintenance; the series from small to large can be designed and manufactured according to customer requirements, covering a wide range.


GLL series



    GLL series coolers use bare pipe (surface unrolled fins) type heat transfer.Small products for fixed tube plate structure, medium and large products for swimming tube plate structure.With bare tube type heat transfer pipe, tube outer membrane heat transfer coefficient is high, strong anti-pollution ability.Suitable for high viscosity and dirty oil cooling; and heat exchange of water to water and gas.According to the requirements of customers, GLL series can be selected stainless steel material, or special alloy materials, suitable for chemical, high temperature medium, seawater and other media heat exchange occasions.Medium and large products using swimming tube plate structure, can remove the tube bundle for cleaning and maintenance; this series of products from small to large can be designed and manufactured according to customer requirements, covering a wide range.


GLL-L series


    GLL series cooler uses bare pipe (surface unrolled fins) type heat transfer.Small products for fixed tube plate structure, medium and large products for swimming tube plate structure.With bare tube type heat transfer pipe, tube outer membrane heat transfer coefficient is high, strong anti-pollution ability.Suitable for high viscosity and dirty oil cooling; and heat exchange of water to water and gas.According to the requirements of customers, GLL series can be selected stainless steel material, or special alloy materials, suitable for chemical, high temperature medium, seawater and other media heat exchange occasions.Medium and large products using swimming tube plate structure, can remove the tube bundle for cleaning and maintenance; this series of products from small to large can be designed and manufactured according to customer requirements, covering a wide range.


SGLL series



    The cooler adopts double structure, composed of two oil coolers of the same area and three-way valve device, one working, one standby, each cooler can bear the cooling load of the whole system, the pipe board is fixed,A floating, removable pipe harness and water chamber box cover for easy cleaning, inspection and maintenance during operation.The material of cooler can be selected according to the place of use of water and a variety of system conditions.


2LQFW series

2LQFL series

2LQF6W series

2LQF1W series

2LQF1L series

LC series

SL series



    SL type tube cooler introduced Japanese technology manufacturing products, cooling pipe using copper pipe rolled cooling fins, small volume, large heat exchange area; using spiral folding plate, oil spiral uniform continuous flow,Overcome the heat transfer dead Angle produced by the traditional fold flow plate, overcome the heat transfer dead Angle produced by the transmission fold flow, high heat transfer efficiency and small pressure loss.


CMC series

    Most of the shell of the plug-in heat exchanger is placed in the fuel tank of the hydraulic equipment, optimizing the space layout, convenient installation and clean and simple appearance.

    The product has the following advantages: 1. Reduce the pipeline pressure drop 2. Efficient and beautiful 3. save space 4. Easy installation.
